THW-90 AWG/KCMIL from 6 AWG
THW-90 AWG/KCMIL from 6 AWG
Application generally in fixed installation, wet and heat resistant
Read moreTHW-90 6 AWG NG, R100
Nexans ref. P00014419-6 - Country ref. 10000374
- Colour: Black
- Conductor diameter: 4.2 mm
- Nominal outer diameter: 7.5 mm
- Approximate weight: 163 kg/km
THW-90 4 AWG NG
Nexans ref. P00014403-4 - Country ref. 10000366
- Packaging: Cut to length (m)
- Colour: Customer Request
- Conductor diameter: 5.3 mm
- Nominal outer diameter: 8.6 mm
- Approximate weight: 242 kg/km
THW-90 1/0 AWG
Nexans ref. P00013871-2
- Colour: Customer Request
- Conductor diameter: 8.6 mm
- Nominal outer diameter: 12.8 mm
- Approximate weight: 577 kg/km
THW-90 2/0 AWG
Nexans ref. P00036135-1 - Country ref. 10050481
- Colour: Customer Request
- Conductor diameter: 9.6 mm
- Nominal outer diameter: 13.9 mm
- Approximate weight: 710 kg/km
THW-90 4/0 AWG
Nexans ref. P00013873-2
- Colour: Customer Request
- Conductor diameter: 12.2 mm
- Nominal outer diameter: 17.2 mm
- Approximate weight: 1118 kg/km
THW-90 250 KCMIL
Nexans ref. P00013875-2
- Packaging: Cut to length (m)
- Colour: Customer Request
- Conductor diameter: 13.3 mm
- Nominal outer diameter: 18.3 mm
- Approximate weight: 1299 kg/km
THW-90 350 KCMIL
Nexans ref. P00019725-2
- Packaging: Cut to length (m)
- Colour: Customer Request
- Conductor diameter: 15.7 mm
- Nominal outer diameter: 20.7 mm
- Approximate weight: 1779 kg/km
THW-90 500 KCMIL
Nexans ref. P00013877-2
- Packaging: Cut to length (m)
- Colour: Customer Request
- Conductor diameter: 18.7 mm
- Nominal outer diameter: 24.5 mm
- Approximate weight: 2524 kg/km
Description
Description
Standards
-
ProductIEC 60227-2; IEC 60228; NTP 370.252
-
TestUL 2556
-
NationalNTP 370.250
Application
In fixed installations, in buildings, dry or wet indoor locations, control board connections and generally in all installations requiring a current capacity greater than TW-80 cable.
Calculation of Current Condition L.V.; 90°C
CALCULATION OF CURRENT CONDITION
Maximum conductor temperature : 90°C.
Ambient air temperature : 30°C.
Characteristics
Characteristics

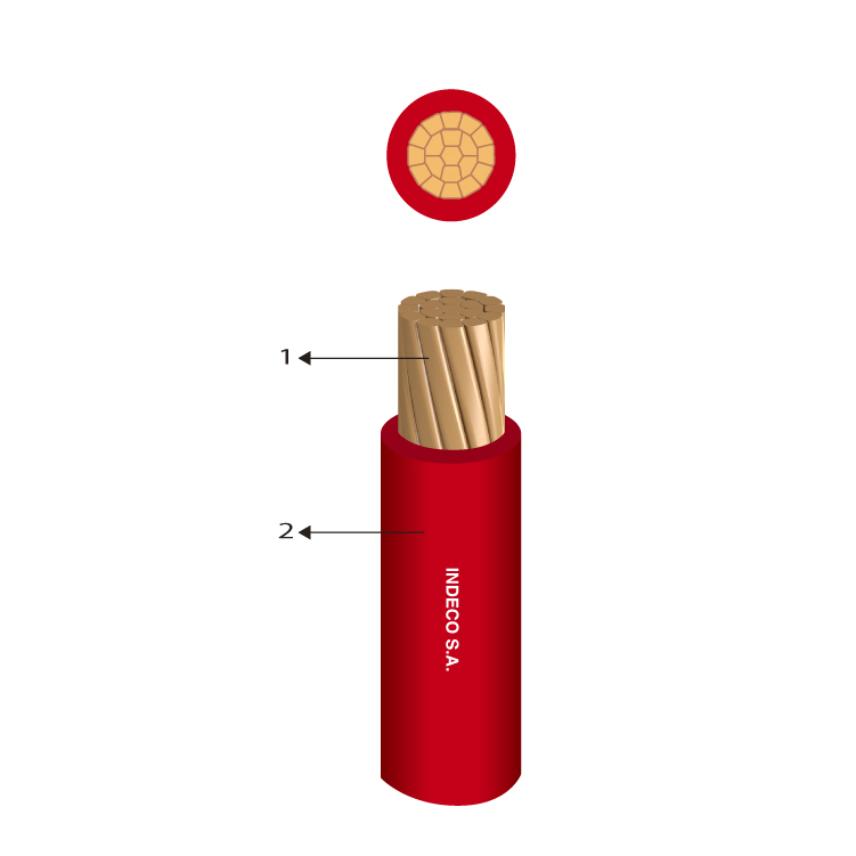

Construction characteristics
Construction characteristics
Conductor material
Soft copper
Insulating material
PVC
Lead free
Yes
Conductor flexibility
Class B
Conductor shape
Compact stranded
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Oil resistance
Oil resistance II
Flame retardant
UL 1581 VW1
Maximum operating temperature
90 °C
Overload maximum core temperature
130 °C
Short-circuit max. conductor temperature
250 °C
