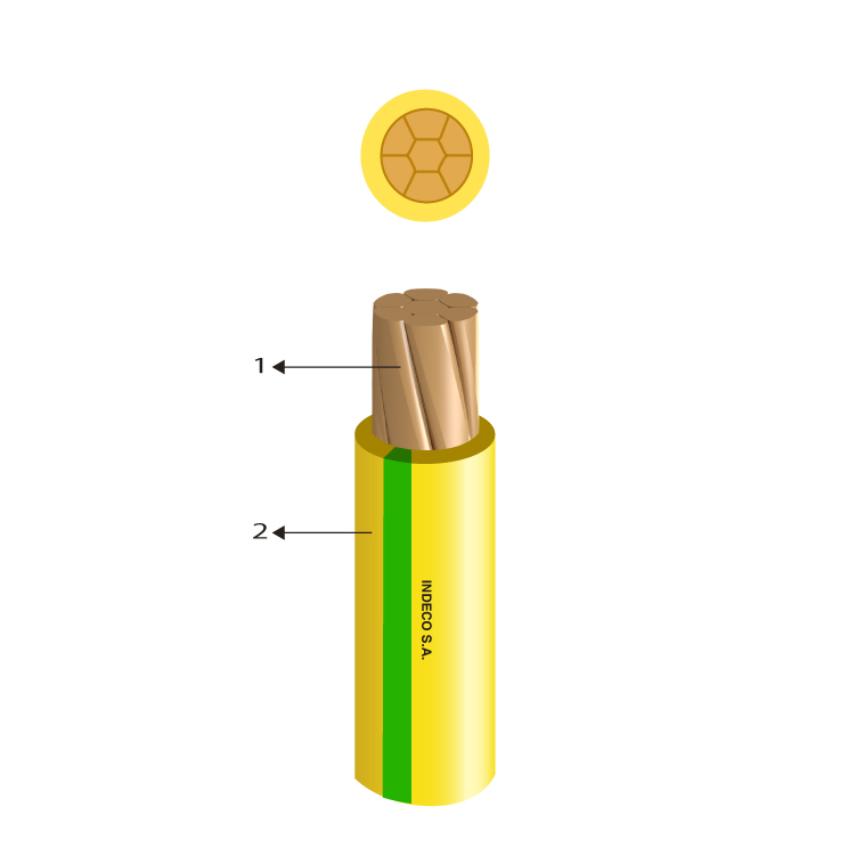

THW-90 450/750 V up to and including 10 mm2; Grounding conductor
THW-90 450/750 V up to and including 10 mm2; Grounding conductor
Application generally in fixed installation, wet and heat resistant.
Read moreTHW-90 10 mm2
Nexans ref. P00015927-5 - Country ref. 10037163
- Conductor diameter: 3.7 mm
- Nominal outer diameter: 6.1 mm
- Approximate weight: 112 kg/km
THW-90 2,5 mm2
Nexans ref. P00015923-7 - Country ref. 10043273
- Conductor diameter: 1.9 mm
- Nominal outer diameter: 3.5 mm
- Approximate weight: 31 kg/km
THW-90 4 mm2
Nexans ref. P00016361-5 - Country ref. 10043274
- Conductor diameter: 2.4 mm
- Nominal outer diameter: 4.0 mm
- Approximate weight: 46 kg/km
THW-90 6 mm2
Nexans ref. P00016362-5 - Country ref. 10043275
- Conductor diameter: 3.0 mm
- Nominal outer diameter: 4.6 mm
- Approximate weight: 65 kg/km
Description
Description
Standards
-
ProductIEC 60228; NTP 370.252; NTP-IEC 60228
-
TestUL 2556
Application
In fixed installations, in buildings, dry or wet indoor locations, control board connections and generally in all installations requiring a current capacity greater than TW-80 cable.
Calculation of Current Condition L.V.; 90°C
CALCULATION OF CURRENT CONDITION
Maximum conductor temperature : 90°C.
Ambient air temperature : 30°C.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Soft copper
Insulating material
PVC
Lead free
Yes
Conductor flexibility
Class 2 IEC 60228
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Dielectric strength
2.0 kV
Time of application Dielectric strength core to screen AC
1 min.
Usage characteristics
Usage characteristics
Flame retardant
UL 1581 VW1
Oil resistance
Oil resistance II
Maximum operating temperature
90 °C
Overload maximum core temperature
130 °C
Short-circuit max. conductor temperature
250 °C
