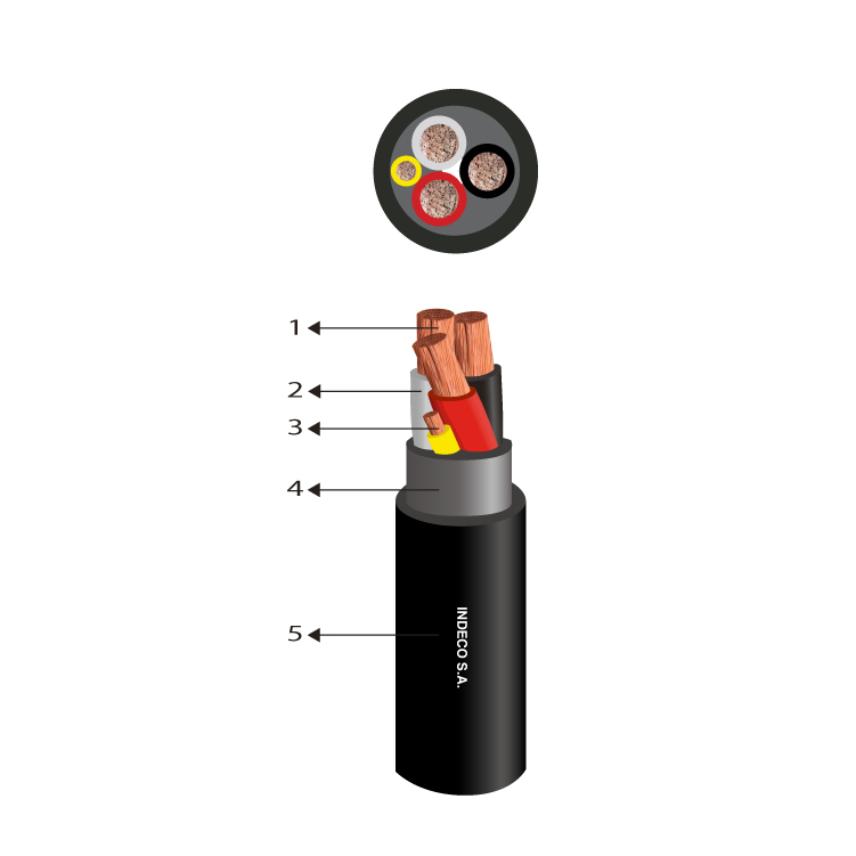

NPT 0,6/1 kV; AWG; with insulated ground conductor
NPT 0,6/1 kV; AWG; with insulated ground conductor
In apparatus or equipment subject to movement.
Read moreNPT 0,6/1 kV 3x10+1x10AWG
Nexans ref. P00010920-9 - Country ref. 10000807
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 10 AWG
- Conductor diameter: 2.9 mm
- Minimum insulation thickness: 1.0 mm
- Ground Conductor cross-section (AWG): 10
- Minimum outer sheath thickness: 1.2 mm
- Diameter over Sheath: 14.9 mm
- Approximate weight: 385 kg/km
NPT 0,6/1 kV 3x8+1x8 AWG
Nexans ref. P00010921-9 - Country ref. 10000805
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 8 AWG
- Conductor diameter: 3.9 mm
- Minimum insulation thickness: 1.0 mm
- Ground Conductor cross-section (AWG): 8
- Minimum outer sheath thickness: 1.2 mm
- Diameter over Sheath: 17.3 mm
- Approximate weight: 554 kg/km
NPT 0,6/1 kV 3x6+1x6 AWG
Nexans ref. P00001346-8 - Country ref. 10000804
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 6 AWG
- Conductor diameter: 4.9 mm
- Minimum insulation thickness: 1.0 mm
- Ground Conductor cross-section (AWG): 6
- Minimum outer sheath thickness: 1.2 mm
- Diameter over Sheath: 19.7 mm
- Approximate weight: 790 kg/km
NPT 0,6/1 kV 3x4+1x4 AWG
Nexans ref. P00001345-8 - Country ref. 10000803
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 4 AWG
- Conductor diameter: 6.2 mm
- Minimum insulation thickness: 1.2 mm
- Ground Conductor cross-section (AWG): 4
- Minimum outer sheath thickness: 1.2 mm
- Diameter over Sheath: 24 mm
- Approximate weight: 1217 kg/km
NPT 0,6/1 kV 3x2+1x2 AWG
Nexans ref. P00001344-8 - Country ref. 10000802
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 2 AWG
- Conductor diameter: 7.9 mm
- Minimum insulation thickness: 1.2 mm
- Ground Conductor cross-section (AWG): 2
- Minimum outer sheath thickness: 1.2 mm
- Diameter over Sheath: 28.3 mm
- Approximate weight: 1816 kg/km
NPT 0,6/1 kV 3x1/0+1x1/0 AWG
Nexans ref. P00001348-4 - Country ref. 10043636
- Conductor flexibility: Class 6
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 1/0 AWG
- Conductor diameter: 9.9 mm
- Minimum insulation thickness: 1.4 mm
- Ground Conductor cross-section (AWG): 1/0
- Minimum outer sheath thickness: 1.5 mm
- Diameter over Sheath: 34.6 mm
- Approximate weight: 2754 kg/km
NPT 0,6/1 kV 3x3/0+1x3/0 AWG
Nexans ref. P00010923-2
- Conductor flexibility: Class 6
- Insulation colour: White + Black + Red + yellow
- Number of cores: 3
- Conductor cross-section (AWG/KCMIL): 3/0 AWG
- Conductor diameter: 12.6 mm
- Minimum insulation thickness: 1.6 mm
- Ground Conductor cross-section (AWG): 3/0
- Minimum outer sheath thickness: 1.7 mm
- Diameter over Sheath: 42.8 mm
- Approximate weight: 4339 kg/km
NPT 0,6/1 kV 4x8+1x8 AWG
Nexans ref. P00029072-2
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + Blue + yellow
- Number of cores: 4
- Conductor cross-section (AWG/KCMIL): 8 AWG
- Conductor diameter: 3.9 mm
- Minimum insulation thickness: 1.0 mm
- Ground Conductor cross-section (AWG): 8
- Minimum outer sheath thickness: 1.2 mm
- Diameter over Sheath: 19 mm
- Approximate weight: 684 kg/km
NPT 0,6/1 kV 4x2+1x2 AWG
Nexans ref. P00004412-2
- Conductor flexibility: Class 5
- Insulation colour: White + Black + Red + yellow
- Number of cores: 4
- Conductor cross-section (AWG/KCMIL): 2 AWG
- Conductor diameter: 7.9 mm
- Minimum insulation thickness: 1.2 mm
- Ground Conductor cross-section (AWG): 2
- Minimum outer sheath thickness: 1.4 mm
- Diameter over Sheath: 31.4 mm
- Approximate weight: 2270 kg/km
NPT 0,6/1 kV 4x2/0+1x2/0 AWG
Nexans ref. P00029746-1
- Conductor flexibility: Class 6
- Insulation colour: White + Black + Red + Blue + yellow
- Number of cores: 4
- Conductor cross-section (AWG/KCMIL): 2/0 AWG
- Conductor diameter: 11.1 mm
- Minimum insulation thickness: 1.4 mm
- Ground Conductor cross-section (AWG): 2/0
- Minimum outer sheath thickness: 1.6 mm
- Diameter over Sheath: 41.8 mm
- Approximate weight: 4236 kg/km
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1; NTP-IEC 60228; NTP-IEC 60502-1
-
TestIEC 60332-1-2; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-504; IEC 60811-505; IEC 60811-506; IEC 60811-508; IEC 60811-509; UL 2556
Application
In apparatus or equipment subject to movement, winding or vibrations and in all type of mobile installati
Calculation of Current Condition NPT
CALCULATION OF CURRENT CONDITION
Current capacity where the fourth (4th) conductor is a neutral of a balanced 3 phase of a 4 wire system.
Maximum conductor temperature : 80°C.
Ambient air temperature : 30°C.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Soft copper
Insulating material
PVC
Outer sheath
PVC Flexible
Sheath colour
Black
Lead free
Yes
Conductor shape
Circular
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Dielectric strength
3.5 kV
Time of application Dielectric strength core to screen DC
5 min.
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Excellent
Usage characteristics
Usage characteristics
Flame retardant
IEC 60332-1-2; FT1
Oil resistance
Good
Maximum operating temperature
80 °C
Overload maximum core temperature
100 °C
Short-circuit max. conductor temperature
160 °C
