PRACTICABLE TTRF-70 (NMT-PC)

Application

In apparatus or equipment subject to movement, winding or vibrations and in all type of mobile equipment.

STANDARDS

PRODUCT

NTP 370.250; NTP 370.252; IEC 60227-5; IEC 60227-1

TEST

IEC 60227-2; IEC 60332-1-2; UL 2556; IEC 60811-401; IEC 60811-409;
IEC 60811-504; IEC 60811-505; IEC 60811-506; IEC 60811-508; IEC 60811-509

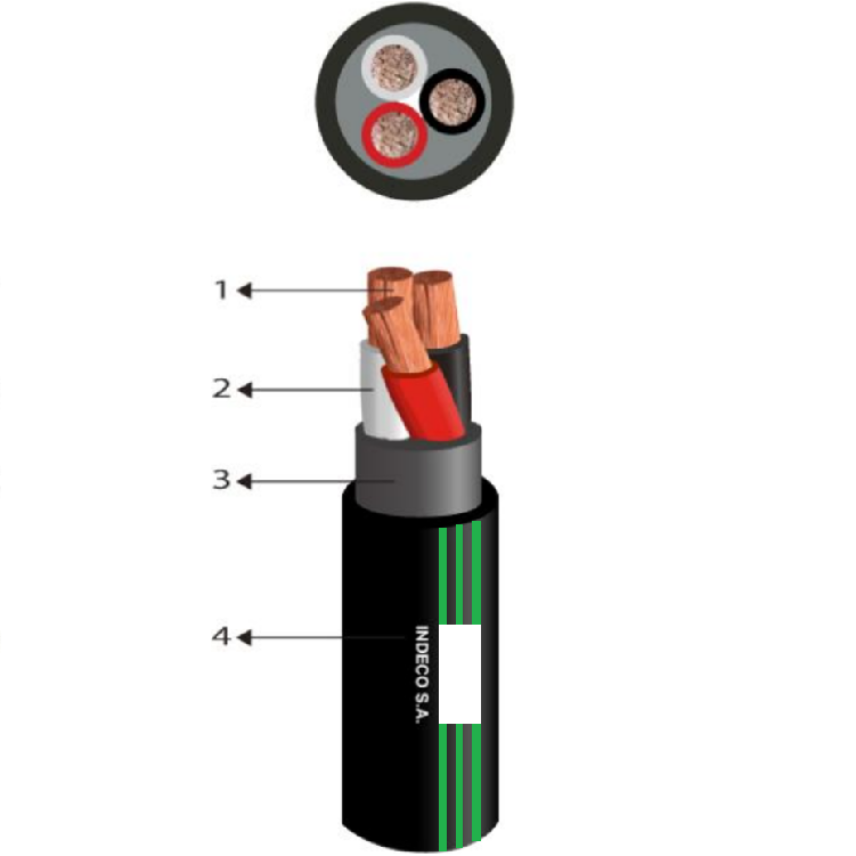

CONSTRUCTION

1. Conductor: Flexible soft copper, class 5.

2. Insulation: Compound polyvinyl chloride PVC.

3. Filler: Flexible compound polyvinyl chloride PVC.

4. Outer sheath: Flexible compound polyvinyl chloride PVC.

MAIN CHARACTERISTICS

Great flexibility, compact termination, resistance to abrasion and moisture. Flame retardant. White tag on the sheath where the user can write on it to identify the use of the cable. Sunlight resistance.

GAUGE

12 AWG and 10 AWG.

MARKING

Legible Printed Marking: PERU INDECO BY NEXANS TTRF-70(NMT-PC) - (Nb cores x gauge) 60227 IEC53  300/500V (YEAR) "- (SEQUENTIAL) 0.5m. || (SEQUENTIAL) 0.5 m. +."

PACKING

In 100-meter standard coils or non returnable wooden reels.

COLOUR

Insulation: See core identification.

Outer sheath: Black with traces (number of traces in function on the number of phases, color of traces according to identification of the gauge).

PRODUCT STANDARDS

NTP 370.250: Conductors of insulated cables.

NTP 370.252: Thermoplastic and thermoset insulated cables of rated voltages up to and including 450/750 V.

IEC 60227-5: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Flexible cables (cords).

IEC 60227-1: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - General requirements.

TESTING STANDARDS

IEC 60227-2: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Test methods.

IEC 60332-1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame.

UL 2556: Wire and Cable Test Methods. Section 9.3: FT1 (Vertical-Specimen) Flame Test.

IEC 60811-401: Thermal ageing methods. Ageing in an air oven.

IEC 60811-409: Miscellaneous tests. Mass loss test for thermoplastic insulations and covers.

IEC 60811-504: Tests at low temperature.

IEC 60811-505: Tests at low temperature.

IEC 60811-506: Tests at low temperature.

IEC 60811-508: Pressure test at high temperature for insulation and sheaths.

IEC 60811-509: Test for resistance of insulations and sheaths to cracking.

UL 2556: Wire and Cable Test Methods. Section 4.2.8.5: Carbon-Arc and Xenon-Arc Tests- Sunlight resistance.
